陶瓷气体放电管
- 产品介绍
- 产品参数

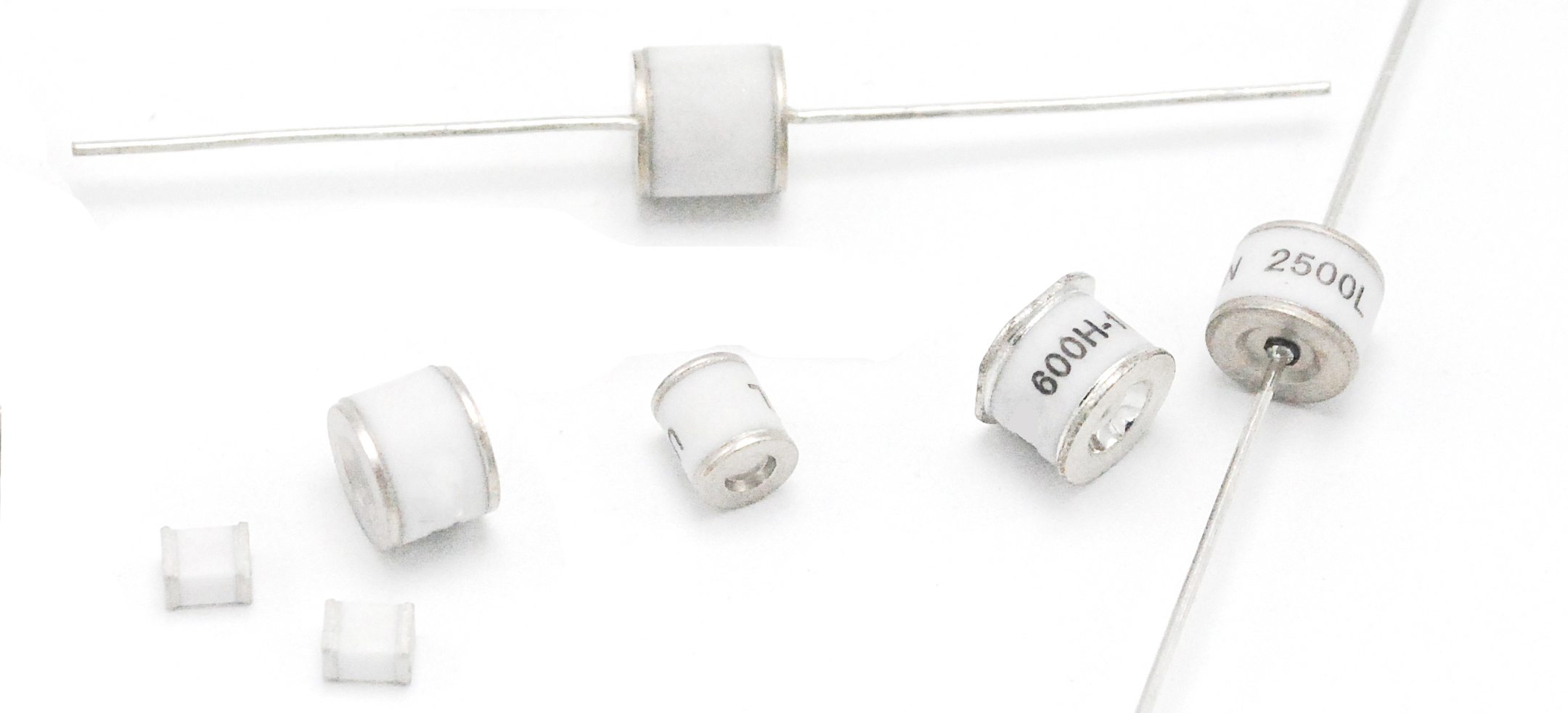

- 陶瓷气体放电管（Gas Discharge Tube）是防雷保护设备中应用最广泛的一种开关器件，无论是交直流电源的防雷还是各种信号电路的防雷，都可以用它来将雷电流泄放入大地。其主要特点是：放电电流大，极间电容小（≤3pF），绝缘电阻高（≥10^9Ω），击穿电压分散性较大（±20%），反应速度较慢（最快为0.1～0.2μs）。按电极数分，有二极放电管和三极放电管（相当于两个二极放电管串联）两种。其外形为圆柱形,有带引线和不带引线两种结构形式（有的还带有过热时短路的保护卡）。
-
Product Name DC Spark-over Voltage @100V/S Maximum Impulse Spark-over Voltage @100V/μS Maximum Impulse Spark-over Voltage @1KV/μS Minimum Insulation Resistance Maximum Capacitance @1MHz Arc Voltage @1A Nominal Impulse Discharge Current @8/20μS±5times Impulse Discharge Voltage @10/700μS Max Impulse Discharge Current @8/20μs 1 time Nominal Alternating Discharge Current @50Hz 1 Sec 10 times Impulse Life @10/1000μs 300 times Package SC1206-150ASMD 150V±30% 600V 700V 1 GΩ (at 50V DC) 0.5pF 10V 0.5KA 4KV - - - 1206 SC1206-200ASMD 200V±30% 650V 750V 1 GΩ (at 100V DC) 0.5pF 10V 0.5KA 4KV - - - 1206 SC1206-230ASMD 230V±30% 650V 750V 1 GΩ (at 100V DC) 0.5pF 10V 0.5KA 4KV - - - 1206 SC1206-300ASMD 300V±30% 700V 800V 1 GΩ (at 100V DC) 0.5pF 10V 0.5KA 4KV - - - 1206 SC1206-350ASMD 350V±30% 750V 850V 1 GΩ (at 100V DC) 0.5pF 10V 0.5KA 4KV - - - 1206 SC1206-400ASMD 400V±30% 850V 950V 1 GΩ (at 100V DC) 0.5pF 10V 0.5KA 4KV - - - 1206 SC1206-420ASMD 420V±30% 850V 950V 1 GΩ (at 100V DC) 0.5pF 10V 0.5KA 4KV - - - 1206 SC1206-470ASMD 470V±30% 950V 1050V 1 GΩ (at 100V DC) 0.5pF 10V 0.5KA 4KV - - - 1206 SC1812-600CSMD 600V±20% 1100V 1200V 1 GΩ (at 100V DC) 1.0pF 15V 2KA - - - - 1812 SC1812-470CSMD 470V±20% 900V 1000V 1 GΩ (at 100V DC) 1.0pF 15V 2KA - - - - 1812 SC1812-420CSMD 420V±20% 900V 1000V 1 GΩ (at 100V DC) 1.0pF 15V 2KA - - - - 1812 SC1812-400CSMD 420V±20% 900V 1000V 1 GΩ (at 100V DC) 1.0pF 15V 2KA - - - - 1812 SC1812-350CSMD 350V±20% 800V 900V 1 GΩ (at 100V DC) 1.0pF 15V 2KA - - - - 1812 SC1812-300CSMD 300V±20% 800V 900V 1 GΩ (at 100V DC) 1.0pF 15V 2KA - - - - 1812 SC1812-230CSMD 230V±20% 600V 750V 1 GΩ (at 100V DC) 1.0pF 15V 2KA - - - - 1812 SC1812-200CSMD 200V±20% 600V 750V 1 GΩ (at 100V DC) 1.0pF 15V 2KA - - - - 1812 SC1812-150CSMD 150V±20% 600V 700V 1 GΩ (at 50V DC) 1.0pF 15V 2KA - - - - 1812 SC1812-90CSMD 90V±20% 600V 700V 1 GΩ (at 50V DC) 1.0pF 15V 2KA - - - - 1812 SC1812-75CSMD 75V±30% 600V 700V 1 GΩ (at 50V DC) 1.0pF 15V 2KA - - - - 1812 SC2E5-75LSMD 75V±20% 500V 650V 1 GΩ (at 50V DC) 1.0pF 15V 5KA - 10KA 5A 100A 5.0*5.0*4.2mm SC2E5-90LSMD 90V±20% 500V 650V 1 GΩ (at 50V DC) 1.0pF 15V 5KA - 10KA 5A 100A 5.0*5.0*4.2mm SC2E5-150LSMD 150V±20% 500V 650V 1 GΩ (at 50V DC) 1.0pF 20V 5KA - 10KA 5A 100A 5.0*5.0*4.2mm SC2E5-200LSMD 200V±20% 500V 650V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A 5.0*5.0*4.2mm SC2E5-230LSMD 230V±20% 600V 700V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A 5.0*5.0*4.2mm SC2E5-300LSMD 300V±20% 700V 800V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A 5.0*5.0*4.2mm SC2E5-350LSMD 350V±20% 700V 800V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A 5.0*5.0*4.2mm SC2E5-420LSMD 420V±20% 800V 950V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A 5.0*5.0*4.2mm SC2E5-470LSMD 470V±20% 900V 1000V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A 5.0*5.0*4.2mm SC2E5-600LSMD 600V±20% 1100V 1200V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A 5.0*5.0*4.2mm SC2E5-800LSMD 800V±20% 1200V 1400V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A 5.0*5.0*4.2mm SC2E5-75LL 75V±20% 500V 600V 1 GΩ (at 25V DC) 1.0pF 15V 5KA - 10KA 5A 100A φ5.5*6mm SC2E5-75L 75V±20% 500V 600V 1 GΩ (at 25V DC) 1.0pF 15V 5KA - 10KA 5A 100A φ5.5*6mm SC2E5-90LL 90V±20% 500V 600V 1 GΩ (at 50V DC) 1.0pF 15V 5KA - 10KA 5A 100A φ5.5*6mm SC2E5-90L 90V±20% 500V 600V 1 GΩ (at 50V DC) 1.0pF 15V 5KA - 10KA 5A 100A φ5.5*6mm SC2E5-150LL 150V±20% 500V 600V 1 GΩ (at 50V DC) 1.0pF 20V 5KA - 10KA 5A 100A φ5.5*6mm SC2E5-150L 150V±20% 500V 600V 1 GΩ (at 50V DC) 1.0pF 20V 5KA - 10KA 5A 100A φ5.5*6mm SC2E5-230LL 230V±20% 600V 700V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A φ5.5*6mm SC2E5-230L 230V±20% 600V 700V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A φ5.5*6mm SC2E5-250LL 250V±20% 700V 800V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A φ5.5*6mm SC2E5-250L 250V±20% 700V 800V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A φ5.5*6mm SC2E5-300LL 300V±20% 800V 900V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A φ5.5*6mm SC2E5-300L 300V±20% 800V 900V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A φ5.5*6mm SC2E5-350LL 350V±20% 800V 900V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A φ5.5*6mm SC2E5-350L 350V±20% 800V 900V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A φ5.5*6mm SC2E5-420LL 420V±20% 900V 1000V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A φ5.5*6mm SC2E5-420L 420V±20% 900V 1000V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A φ5.5*6mm SC2E5-470LL 470V±20% 900V 1000V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A φ5.5*6mm SC2E5-470L 470V±20% 900V 1000V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A φ5.5*6mm SC2E5-600LL 600V±20% 1100V 1200V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A φ5.5*6mm SC2E5-600L 600V±20% 1100V 1200V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A φ5.5*6mm SC2E5-800LL 800V±20% 1200V 1400V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A φ5.5*6mm SC2E5-800L 800V±20% 1200V 1400V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A φ5.5*6mm SC2E6-75LSMD 75V±20% 500V 650V 1 GΩ (at 25V DC) 1.0pF 15V 5KA - 10KA 5A 100A 6.2*6.2*4.2mm SC2E6-90LSMD 90V±20% 500V 650V 1 GΩ (at 50V DC) 1.0pF 15V 5KA - 10KA 5A 100A 6.2*6.2*4.2mm SC2E6-150LSMD 150V±20% 500V 650V 1 GΩ (at 50V DC) 1.0pF 20V 5KA - 10KA 5A 100A 6.2*6.2*4.2mm SC2E6-230LSMD 230V±20% 600V 700V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A 6.2*6.2*4.2mm SC2E6-300LSMD 300V±20% 700V 800V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A 6.2*6.2*4.2mm SC2E6-350LSMD 350V±20% 700V 800V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A 6.2*6.2*4.2mm SC2E6-420LSMD 420V±20% 800V 900V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A 6.2*6.2*4.2mm SC2E6-470LSMD 470V±20% 900V 1000V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A 6.2*6.2*4.2mm SC2E6-600LSMD 600V±20% 1100V 1200V 1 GΩ (at 100V DC) 1.0pF 20V 5KA - 10KA 5A 100A 6.2*6.2*4.2mm SC2E8-75M 75V±20% 500V 600V 1 GΩ (at 25V DC) 1.5pF 15V 10KA - 20KA 10A 100A φ8*6mm SC2E8-75ML 75V±20% 500V 600V 1 GΩ (at 25V DC) 1.5pF 15V 10KA - 20KA 10A 100A φ8*6mm SC2E8-75MSMD 75V±20% 500V 600V 1 GΩ (at 25V DC) 1.5pF 15V 10KA - 20KA 10A 100A φ8*6mm SC2E8-90M 90V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 15V 10KA - 20KA 10A 100A φ8*6mm SC2E8-90ML 90V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 15V 10KA - 20KA 10A 100A φ8*6mm SC2E8-90MSMD 90V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 15V 10KA - 20KA 10A 100A φ8*6mm SC2E8-150M 150V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-150ML 150V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-150MSMD 150V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-230M 230V±20% 600V 700V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-230ML 230V±20% 600V 700V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-230MSMD 230V±20% 600V 700V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-250M 250V±20% 700V 800V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-250ML 250V±20% 700V 800V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-250MSMD 250V±20% 700V 800V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-300M 300V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-300ML 300V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-300MSMD 300V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-350M 350V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-350ML 350V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-350MSMD 350V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-420M 420V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-420ML 420V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-420MSMD 420V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-470M 470V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-470ML 470V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-470MSMD 470V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-600M 600V±20% 1100V 1200V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-600ML 600V±20% 1100V 1200V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-600MSMD 600V±20% 1100V 1200V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-800M 800V±20% 1200V 1400V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-800ML 800V±20% 1200V 1400V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-800MSMD 800V±20% 1200V 1400V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 100A φ8*6mm SC2E8-75H 75V±20% 500V 600V 1 GΩ (at 25V DC) 1.5pF 15V 20KA - 25KA 20A 200A φ8*6mm SC2E8-75HL 75V±20% 500V 600V 1 GΩ (at 25V DC) 1.5pF 15V 20KA - 25KA 20A 200A φ8*6mm SC2E8-75HSMD 75V±20% 500V 600V 1 GΩ (at 25V DC) 1.5pF 15V 20KA - 25KA 20A 200A φ8*6mm SC2E8-90H 90V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 15V 20KA - 25KA 20A 200A φ8*6mm SC2E8-90HL 90V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 15V 20KA - 25KA 20A 200A φ8*6mm SC2E8-90HSMD 90V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 15V 20KA - 25KA 20A 200A φ8*6mm SC2E8-150H 150V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-150HL 150V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-150HSMD 150V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-230H 230V±20% 600V 700V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-230HL 230V±20% 600V 700V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-230HSMD 230V±20% 600V 700V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-250H 250V±20% 700V 800V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-250HL 250V±20% 700V 800V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-250HSMD 250V±20% 700V 800V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-300H 300V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-300HL 300V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-300HSMD 300V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-350H 350V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-350HL 350V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-350HSMD 350V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-420H 420V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-420HL 420V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-420HSMD 420V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-470H 470V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-470HL 470V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-470HSMD 470V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-600H 600V±20% 1100V 1200V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-600HL 600V±20% 1100V 1200V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-600HSMD 600V±20% 1100V 1200V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-800H 800V±20% 1200V 1400V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-800HL 800V±20% 1200V 1400V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200A φ8*6mm SC2E8-800HSMD 800V±20% 1200V 1400V 1 GΩ (at 100V DC) 1.5pF 20V 20KA - 25KA 20A 200 φ8*6mm SC2E5-1000DL 1000V±20% 1500V 1600V 1 GΩ (at 100V DC) 1.0pF 25V 2.5KA - 5KA - - φ5.5*6mm SC2E5-1000D 1000V±20% 1500V 1600V 1 GΩ (at 100V DC) 1.0pF 25V 2.5KA - 5KA - - φ5.5*6mm SC2E5-1600DL 1600V±20% 2200V 2400V 1 GΩ (at 100V DC) 1.0pF 25V 2.5KA - 5KA - - φ5.5*6mm SC2E5-1600D 1600V±20% 2200V 2400V 1 GΩ (at 100V DC) 1.0pF 25V 2.5KA - 5KA - - φ5.5*6mm SC2E5-2000DL 2000V±20% 3000V 3500V 1 GΩ (at 100V DC) 1.0pF 25V 2.5KA - 5KA - - φ5.5*6mm SC2E5-2000D 2000V±20% 3000V 3500V 1 GΩ (at 100V DC) 1.0pF 25V 2.5KA - 5KA - - φ5.5*6mm SC2E5-2500DL 2500V±20% 3800V 4000V 1 GΩ (at 100V DC) 1.0pF 25V 2.5KA - 5KA - - φ5.5*6mm SC2E5-2500D 2500V±20% 3800V 4000V 1 GΩ (at 100V DC) 1.0pF 25V 2.5KA - 5KA - - φ5.5*6mm SC2E5-2700DL 2700V±20% 3800V 4000V 1 GΩ (at 100V DC) 1.0pF 25V 2.5KA - 5KA - - φ5.5*6mm SC2E5-2700D 2700V±20% 3800V 4000V 1 GΩ (at 100V DC) 1.0pF 25V 2.5KA - 5KA - - φ5.5*6mm SC2E5-3000DL 3000V±20% 4300V 4500V 1 GΩ (at 100V DC) 1.0pF 25V 2.5KA - 5KA - - φ5.5*6mm SC2E5-3000D 3000V±20% 4300V 4500V 1 GΩ (at 100V DC) 1.0pF 25V 2.5KA - 5KA - - φ5.5*6mm SC2E5-3500DL 3500V±20% 4800V 5000V 1 GΩ (at 100V DC) 1.0pF 25V 2.5KA - 5KA - - φ5.5*6mm SC2E5-3500D 3500V±20% 4800V 5000V 1 GΩ (at 100V DC) 1.0pF 25V 2.5KA - 5KA - - φ5.5*6mm SC2E5-3600DL 3600V±20% 4800V 5000V 1 GΩ (at 100V DC) 1.0pF 25V 2.5KA - 5KA - - φ5.5*6mm SC2E5-3600D 3600V±20% 4800V 5000V 1 GΩ (at 100V DC) 1.0pF 25V 2.5KA - 5KA - - φ5.5*6mm SC2E5-4000DL 4000V±20% 5400V 5600V 1 GΩ (at 100V DC) 1.0pF 25V 2.5KA - 5KA - - φ5.5*6mm SC2E5-4000D 4000V±20% 5400V 5600V 1 GΩ (at 100V DC) 1.0pF 25V 2.5KA - 5KA - - φ5.5*6mm SC2E8-1000L 1000V±20% 1500V 1600V 1 GΩ (at 100V DC) 1.5pF 25V 5KA - 10KA - - φ8*6mm SC2E8-1000LL 1000V±20% 1500V 1600V 1 GΩ (at 100V DC) 1.5pF 25V 5KA - 10KA - φ8*6mm SC2E8-1400LL 1400V±20% 2100V 2200V 1 GΩ (at 100V DC) 1.5pF 25V 5KA - 10KA - - φ8*6mm SC2E8-1400L 1400V±20% 2100V 2200V 1 GΩ (at 100V DC) 1.5pF 25V 5KA - 10KA - - φ8*6mm SC2E8-1600LL 1600V±20% 2200V 2400V 1 GΩ (at 100V DC) 1.5pF 25V 5KA - 10KA - - φ8*6mm SC2E8-1600L 1600V±20% 2200V 2400V 1 GΩ (at 100V DC) 1.5pF 25V 5KA - 10KA - - φ8*6mm SC2E8-2000LL 2000V±20% 3000V 3500V 1 GΩ (at 100V DC) 1.5pF 25V 5KA - 10KA - - φ8*6mm SC2E8-2000L 2000V±20% 3000V 3500V 1 GΩ (at 100V DC) 1.5pF 25V 5KA - 10KA - - φ8*6mm SC2E8-2500LL 2500V±20% 3800V 4000V 1 GΩ (at 100V DC) 1.5pF 25V 5KA - 10KA - - φ8*6mm SC2E8-2500L 2500V±20% 3800V 4000V 1 GΩ (at 100V DC) 1.5pF 25V 5KA - 10KA - - φ8*6mm SC2E8-2700LL 2700V±20% 3800V 4000V 1 GΩ (at 100V DC) 1.5pF 25V 5KA - 10KA - - φ8*6mm SC2E8-2700L 2700V±20% 3800V 4000V 1 GΩ (at 100V DC) 1.5pF 25V 5KA - 10KA - - φ8*6mm SC2E8-3000LL 3000V±20% 4300V 4500V 1 GΩ (at 100V DC) 1.5pF 25V 5KA - 10KA - - φ8*6mm SC2E8-3000L 3000V±20% 4300V 4500V 1 GΩ (at 100V DC) 1.5pF 25V 5KA - 10KA - - φ8*6mm SC2E8-3500LL 3500V±20% 4800V 5000V 1 GΩ (at 100V DC) 1.5pF 25V 5KA - 10KA - - φ8*6mm SC2E8-3500L 3500V±20% 4800V 5000V 1 GΩ (at 100V DC) 1.5pF 25V 5KA - 10KA - - φ8*6mm SC2E8-3600LL 3600V±20% 4800V 5000V 1 GΩ (at 100V DC) 1.5pF 25V 5KA - 10KA - - φ8*6mm SC2E8-3600L 3600V±20% 4800V 5000V 1 GΩ (at 100V DC) 1.5pF 25V 5KA - 10KA - - φ8*6mm SC2E8-4000LL 4000V±20% 5400V 5600V 1 GΩ (at 100V DC) 1.0pF 25V 5KA - 10KA - - φ8*8mm SC2E8-4000L 4000V±20% 5400V 5600V 1 GΩ (at 100V DC) 1.0pF 25V 5KA - 10KA - - φ8*8mm SC2E8-4500LL 4500V±20% 5800V 6000V 1 GΩ (at 100V DC) 1.0pF 25V 5KA - 10KA - - φ8*8mm SC2E8-4500L 4500V±20% 5800V 6000V 1 GΩ (at 100V DC) 1.0pF 25V 5KA - 10KA - - φ8*8mm SC2E8-5000LL 5000V±20% 6000V 6500V 1 GΩ (at 100V DC) 1.0pF 25V 5KA - 10KA - - φ8*8mm SC2E8-5000L 5000V±20% 6000V 6500V 1 GΩ (at 100V DC) 1.0pF 25V 5KA - 10KA - - φ8*8mm SC2E8-5500LL 5500V±20% 6500V 7000V 1 GΩ (at 100V DC) 1.0pF 25V 5KA - 10KA - - φ8*8mm SC2E8-5500L 5500V±20% 6500V 7000V 1 GΩ (at 100V DC) 1.0pF 25V 5KA - 10KA - - φ8*8mm SC2E8-6000LL 6000V±20% 7500V 8000V 1 GΩ (at 100V DC) 1.0pF 25V 5KA - 10KA - - φ8*8mm SC2E8-6000L 6000V±20% 7500V 8000V 1 GΩ (at 100V DC) 1.0pF 25V 5KA - 10KA - - φ8*8mm SC3E5-600L 600V±20% 1100V 1200V 1 GΩ (at 100V DC) 1.5pF 20V 5KA - 10KA 5A 200A φ5*7.6mm SC3E5-600LSMD 600V±20% 1100V 1200V 1 GΩ (at 100V DC) 1.5pF 20V 5KA - 10KA 5A 200A φ5*7.6mm SC3E5-470L 470V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 20V 5KA - 10KA 5A 200A φ5*7.6mm SC3E5-470LSMD 470V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 20V 5KA - 10KA 5A 200A φ5*7.6mm SC3E5-420L 420V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 20V 5KA - 10KA 5A 200A φ5*7.6mm SC3E5-420LSMD 420V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 20V 5KA - 10KA 5A 200A φ5*7.6mm SC3E5-350L 350V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 20V 5KA - 10KA 5A 200A φ5*7.6mm SC3E5-350LSMD 350V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 20V 5KA - 10KA 5A 200A φ5*7.6mm SC3E5-300L 300V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 20V 5KA - 10KA 5A 200A φ5*7.6mm SC3E5-300LSMD 300V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 20V 5KA - 10KA 5A 200A φ5*7.6mm SC3E5-250L 250V±20% 600V 700V 1 GΩ (at 100V DC) 1.5pF 20V 5KA - 10KA 5A 200A φ5*7.6mm SC3E5-250LSMD 250V±20% 600V 700V 1 GΩ (at 100V DC) 1.5pF 20V 5KA - 10KA 5A 200A φ5*7.6mm SC3E5-230L 230V±20% 600V 700V 1 GΩ (at 100V DC) 1.5pF 20V 5KA - 10KA 5A 200A φ5*7.6mm SC3E5-230LSMD 230V±20% 600V 700V 1 GΩ (at 100V DC) 1.5pF 20V 5KA - 10KA 5A 200A φ5*7.6mm SC3E5-150L 150V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 20V 5KA - 10KA 5A 200A φ5*7.6mm SC3E5-150LSMD 150V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 20V 5KA - 10KA 5A 200A φ5*7.6mm SC3E5-150LSMD 90V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 15V 5KA - 10KA 5A 200A φ5*7.6mm SC3E5-90L 90V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 15V 5KA - 10KA 5A 200A φ5*7.6mm SC3E5-90LSMD 90V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 15V 5KA - 10KA 5A 200A φ5*7.6mm SC3E5-75L 75V±20% 500V 600V 1 GΩ (at 25V DC) 1.5pF 15V 5KA - 10KA 5A 200A φ5*7.6mm SC3E5-75LSMD 75V±20% 500V 600V 1 GΩ (at 25V DC) 1.5pF 15V 5KA - 10KA 5A 200A φ5*7.6mm SC3E6-600MM 600V±20% 1100V 1200V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 200A φ6*8.5mm SC3E6-600M 600V±20% 1100V 1200V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 200A φ6*8.5mm SC3E6-470M 470V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 200A φ6*8.5mm SC3E6-470M 470V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 200A φ6*8.5mm SC3E6-420MM 420V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 200A φ6*8.5mm SC3E6-420M 420V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 200A φ6*8.5mm SC3E6-350MM 350V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 200A φ6*8.5mm SC3E6-350M 350V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 200A φ6*8.5mm SC3E6-300MM 300V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 200A φ6*8.5mm SC3E6-300M 300V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 200A φ6*8.5mm SC3E6-250MM 250V±20% 600V 700V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 200A φ6*8.5mm SC3E6-250M 250V±20% 600V 700V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 200A φ6*8.5mm SC3E6-230MM 230V±20% 600V 700V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 200A φ6*8.5mm SC3E6-230M 230V±20% 600V 700V 1 GΩ (at 100V DC) 1.5pF 20V 10KA - 20KA 10A 200A φ6*8.5mm SC3E6-150MM 150V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 20V 10KA - 20KA 10A 200A φ6*8.5mm SC3E6-150M 150V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 20V 10KA - 20KA 10A 200A φ6*8.5mm SC3E6-90MM 90V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 15V 10KA - 20KA 10A 200A φ6*8.5mm SC3E6-90M 90V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 15V 10KA - 20KA 10A 200A φ6*8.5mm SC3E6-75MM 75V±20% 500V 600V 1 GΩ (at 25V DC) 1.5pF 15V 10KA - 20KA 10A 200A φ6*8.5mm SC3E6-75M 75V±20% 500V 600V 1 GΩ (at 25V DC) 1.5pF 15V 10KA - 20KA 10A 200A φ6*8.5mm SC3E8-800H 800V±20% 1200V 1400V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-800HP 800V±20% 1200V 1400V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-800HMF 800V±20% 1200V 1400V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-800HM 800V±20% 1200V 1400V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-600H 600V±20% 1100V 1200V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-600HP 600V±20% 1100V 1200V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ6*8.5mm SC3E8-600HMF 600V±20% 1100V 1200V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-600HM 600V±20% 1100V 1200V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-470H 470V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-470HP 470V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-470HP 470V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-470HMF 470V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-470HM 470V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-420H 420V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-420HP 420V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-420HMF 420V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-420HM 420V±20% 900V 1000V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-350HM 350V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-350HMF 350V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-350HP 350V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-350H 350V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-300HM 300V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-300HMF 300V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-300HP 300V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-300H 300V±20% 800V 900V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A 6.2*6.2*4.2mm SC3E8-250HM 250V±20% 600V 700V 1 GΩ (at 50V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-250HMF 250V±20% 600V 700V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-250HP 250V±20% 600V 700V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-250H 250V±20% 600V 700V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-230HM 230V±20% 600V 700V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-230HMF 230V±20% 600V 700V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-230HP 230V±20% 600V 700V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-230H 230V±20% 600V 700V 1 GΩ (at 100V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-150HM 150V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-150HMF 150V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-150HP 150V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-150H 150V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 25V 20KA - 25KA 20A 200A φ8*10mm SC3E8-90HM 90V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 15V 20KA - 25KA 20A 200A φ8*10mm SC3E8-90HMF 90V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 15V 20KA - 25KA 20A 200A φ8*10mm SC3E8-90HP 90V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 15V 20KA - 25KA 20A 200A φ8*10mm SC3E8-90H 90V±20% 500V 600V 1 GΩ (at 50V DC) 1.5pF 15V 20KA - 25KA 20A 200A φ8*10mm SC3E8-75HM 75V±20% 500V 600V 1 GΩ (at 25V DC) 1.5pF 15V 20KA - 25KA 20A 200A φ8*10mm SC3E8-75HM 75V±20% 500V 600V 1 GΩ (at 25V DC) 1.5pF 15V 20KA - 25KA 20A 200A φ8*10mm SC3E8-75HMF 75V±20% 500V 600V 1 GΩ (at 25V DC) 1.5pF 15V 20KA - 25KA 20A 200A φ8*10mm SC3E8-75HP 75V±20% 500V 600V 1 GΩ (at 25V DC) 1.5pF 15V 20KA - 25KA 20A 200A φ8*10mm
